VES U/M ULTRA 24 VOLT DC

Product Overview

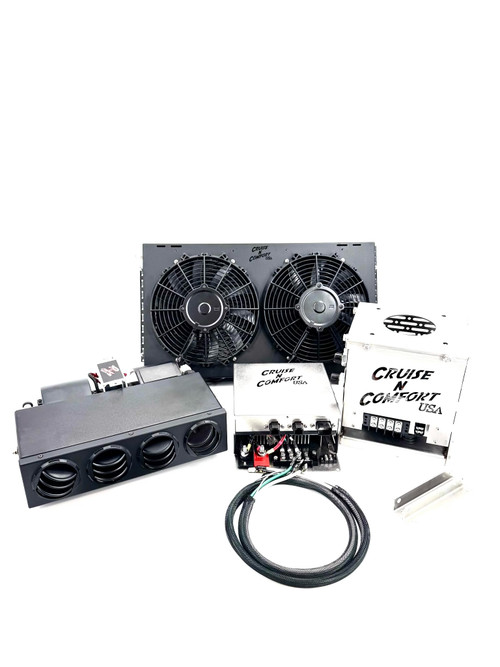

The VES U/M ULTRA is a compact, high-performance undermount DC air conditioning system,

engineered for tight-space installations in vans, RVs, boats, and off-grid applications. This system features a

remote-mounted compressor, providing flexibility in installation - inside or outside your vehicle or vessel. The

multi-piece design allows for custom configurations, making it ideal for applications where traditional rooftop or bulky

AC units won't fit.

Key Features & Benefits

- Undermount Design - Ideal for space-constrained applications where rooftop or bulky AC units are impractical.

- Remote-Mounted Compressor - Allows installation inside or outside the vehicle for flexibility and durability.

- Rugged Stainless Steel Protection - The 304 stainless steel enclosure safeguards the compressor from impact.

- Multi-Piece System for Easy Installation - Electronics and mounting brackets are separated for easy placement.

- Customizable Cable Length Options:

- 12V System: 5-foot or 7-foot cable

- 24V System: 5-foot, 7-foot, or 10-foot cable

- 48V System: 5-foot, 7-foot, or 10-foot cable

- Powerful Multi-Directional Blower - Airflow can be adjusted in almost any direction, including downward.

- Versatile Mounting Options - Install the evaporator on the ceiling, floor, or inside cabinets.

- High-Efficiency Cooling - Provides powerful cooling while maintaining low power consumption.

Technical Specifications

Voltage Operating Range:

VES U/M ULTRA 12L - 10-15V DC

VES U/M ULTRA 24L - 20-31V DC

VES U/M ULTRA 48L - 40-62V DC

Current Consumption:

VES U/M ULTRA 12L - 38-55A DC

VES U/M ULTRA 24L - 25-33A DC

VES U/M ULTRA 48L - 8-16A DC

Cooling Capacity:

VES U/M ULTRA 12L - 10,000 BTU

VES U/M ULTRA 24L - 11,000 BTU

VES U/M ULTRA 48L - 12,000 BTU

Weight:

Evaporator Unit - 17.8 lbs

Compressor Unit - 29 lbs

Controller - 8.7 lbs

Single Fan Condenser - 7.75 lbs

Refrigerant Compatibility:

Supports R134a and R513a refrigerantsWarranty & Availability

- Warranty: 1 Year

Ideal Applications

- Van Conversions & Camper Vans

- Overland Vehicles & Expedition Rigs

- RVs & Motorhomes

- Marine & Boat Cabins

- Off-Grid & Battery-Powered Setups

- Emergency & Specialty Vehicles
