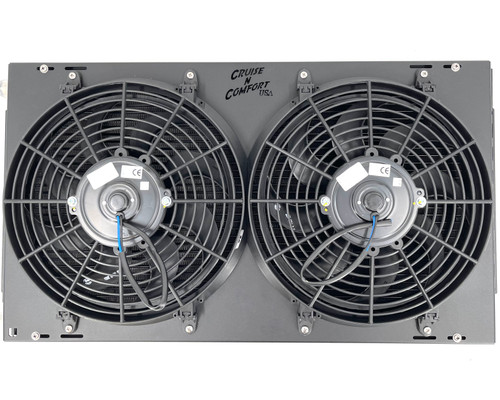

  • Dual Fan Parallel Flow Condenser. Unit is powder coated aluminum and is fitted with dust and water resistant fans. Application HD/VES Series.
  • Top view of Dual Fan Condenser with optional Rock Guard and optional Stainless Mounting Brackets. Application HD/VES Series.
  • Side view of Dual Fan Condenser with optional Rock Guard and optional Stainless Mounting Brackets. Application HD/VES Series.
  • Image 4

Upgrade HD/VES 12 Volt System Condenser Dual Fan (comes standard with 24 and 48 volt systems)

$349.00
Condition:
New
Shipping:
$26.75 (Fixed shipping cost)
Quantity:

Product Description

Choose this option to upgrade your VES 12L or s or HD 12L or s system to a Dual Fan/Heavy Duty Condenser. Price listed is the upgrade price in lieu of the standard single fan condenser included with the a/c system. Great for warm climates or excessive heat locations when mounted under vehicle. This condenser has an aluminum shroud and two 11" electric fans with curved blades. The shroud and fans are mounted to the condenser with stainless steel screws for longevity and durability.The condenser CANNOT be mounted completely flat, it has to be on a slight angle so the small fitting #6 is lower than the large fitting #8.

Dimensions:

Condenser core size: 14" x 25"
Overall condenser size: 14-1/2" tall x 27" wide
Overall thickness: 3-1/8"
Fan CFM (per fan): 950 CFM
Total CFM: 1900 CFM (both fans mounted on condenser w/ shroud)
Amps:NOMINAL 12.5 amp draw

This type of remote condenser should not be used in front of the radiator. The shroud will block airlfow from passing through the radiator causing condensing and/or overheating problems. If you need to mount it in front of the radiator we can ship it without the shroud.

*This unit comes standard with the HD-24L and s also with the VES-24L and s.
