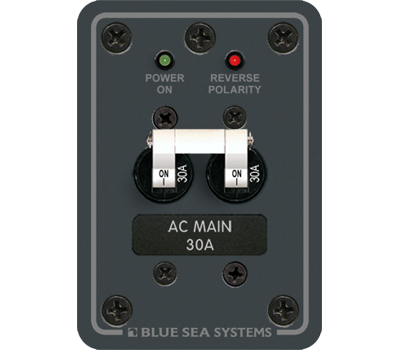

Blue Sea 8077 & 8079 - AC Main Circuit Breaker Panel 50 Amps

$101.48

Product Description

Blue Sea Systems AC Main Breaker Panels are available in 8077 (30A) and 8079 (50A); select your version above!

Blue Sea Systems 8077 (30A) and 8079 (50A) panels utilize double breakers for main AC shutoff, usually at the shore power point of entry. White toggles.

Red reverse polarity indicating LED
Safety ground screw on panel back
Combines switching and circuit protection into a single device
"Trip Free" design cannot be held "ON" during fault current condition

Specifications:

Positions	Main Only
Installed Double Pole Circuit Breakers	1
Voltage	120 Volt
Width in" (mm)	2.63 (66.68)
Height in" (mm)	3.75 (95.25)
Weight Lb (Kg)	0.51 (0.23)
